Multi Room Systems
Multi Room Systems

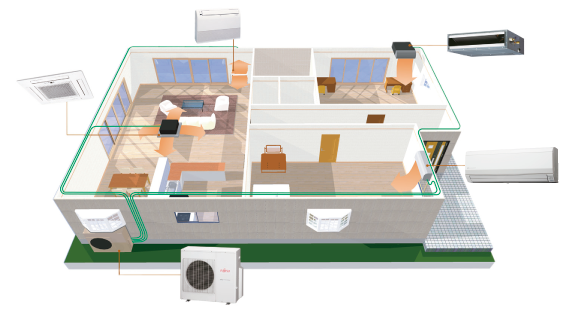

Heat or cool 2, 3 or 4 rooms from only one outdoor unit.
The choice of systems allows a wide variety of 2, 3 or 4 indoor units to be connected to just 1 outdoor unit and you can tailor your own combination of hi wall, floor console, cassette or bulkhead to best suit each room. Our product range include 5 indoor unit types spanning 12 models ranging in capacity from 2.0kW to 7.0kW. With such a diverse choice of options there is a combination to suit most homes or small businesses in New Zealand.

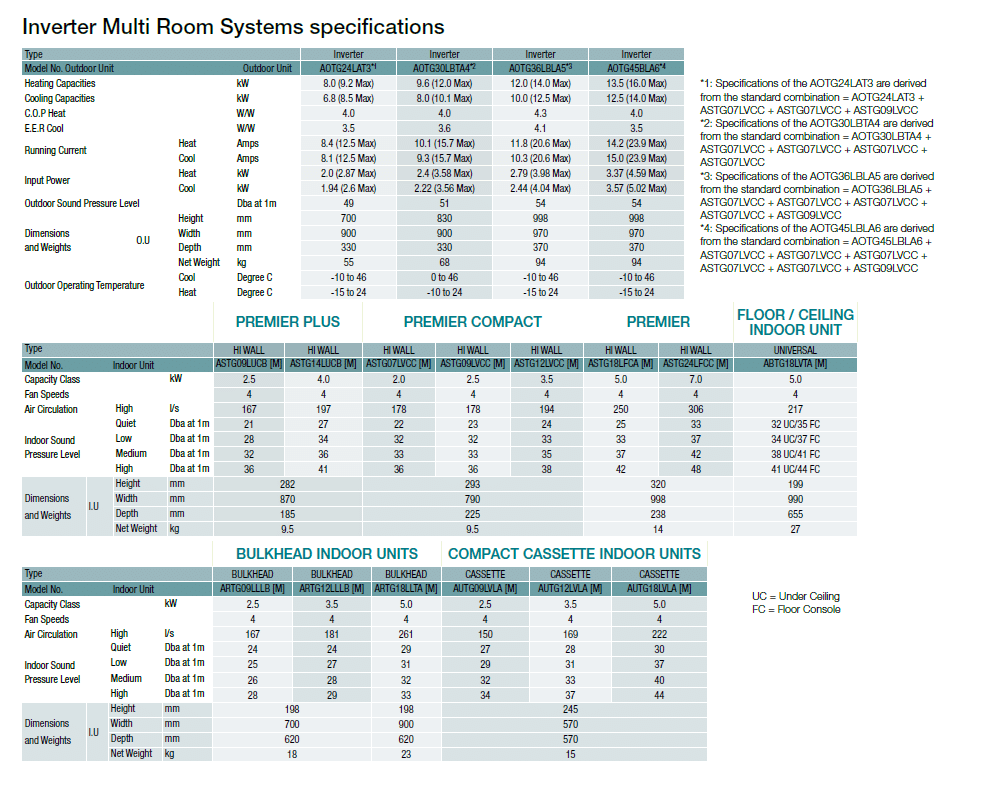

Specs
Brochure
Features
INDOOR UNITS
Compact Hi-Wall Premier
ASTG07/09/12LVCC
Designed for small rooms like bedrooms, this quiet compact range of wall mounted indoor units are discreet and suit most decors.
ASTG07/09/12LVCC
Designed for small rooms like bedrooms, this quiet compact range of wall mounted indoor units are discreet and suit most decors.
Hi-Wall Premier Plus
ASTG09/14LUCB
This smart compact unit offers many extra features such as the Human Sensor. It is efficient and quiet, suitable for small and medium size rooms.
ASTG09/14LUCB
This smart compact unit offers many extra features such as the Human Sensor. It is efficient and quiet, suitable for small and medium size rooms.
Hi-Wall Premier Large Capacity
ASTG18LFCA / ASTG24LFCC
These large capacity indoor units are suitable for large living areas.
ASTG18LFCA / ASTG24LFCC
These large capacity indoor units are suitable for large living areas.
Floor or Ceiling Console
ABTG18LVTA
Suitable for floor or ceiling installation, this model is designed for a medium to large living area.
ABTG18LVTA
Suitable for floor or ceiling installation, this model is designed for a medium to large living area.
Compact Cassette
AUTG09/12/18LVLA
These compact cassette models have a 4-way air flow direction or optional 3-way. They sit discreetly in the ceiling with just the grille showing.
AUTG09/12/18LVLA
These compact cassette models have a 4-way air flow direction or optional 3-way. They sit discreetly in the ceiling with just the grille showing.
Slim Duct
ARTG09/12LLLB / ARTG18LLTA
These bulk head models are discreet in appearance and can also use the smart auto louvre grill option.
ARTG09/12LLLB / ARTG18LLTA
These bulk head models are discreet in appearance and can also use the smart auto louvre grill option.
OUTDOOR UNITS
2-3 Room Set Up
AOTG24LAT3
AOTG24LAT3
H
8.0KW
C
6.8KW
2-4 Room Set Up
AOTG30LBTA4
AOTG30LBTA4
H
9.6KW
C
8.0KW
2-5 Room Set Up
AOTG36LBLA5
AOTG36LBLA5
H
12.0KW
C
8.0KW
2-6 Room Set Up
AOTG45LBLA6
AOTG45LBLA6
H
13.50KW
C
12.50KW
Controller & Options
Independent Control
Each indoor unit can be operated independently. This means that on / off, temperature, air movement, and time / clock operation can all be controlled from their own controller. (The multi system cannot be operated in heat and cool mode simultaneously).
Each indoor unit can be operated independently. This means that on / off, temperature, air movement, and time / clock operation can all be controlled from their own controller. (The multi system cannot be operated in heat and cool mode simultaneously).
New Home Controller: 5 & 6 room systems only
The new home controller is a new central controller option exclusive to the 5 and 6 room multi systems.
The controller has a number of features including : –
The new home controller is a new central controller option exclusive to the 5 and 6 room multi systems.
The controller has a number of features including : –
- Allowing control of up to 6 indoor units from one central location
- RC prohibition function can be performed enabling the restriction of one or multiple units.
- Monitoring of each connected unit
- Weekly scheduling
- Economy and low noise modes can be set from one central location.
Innovative technology
High efficiency / low noise large fan
Newly designed fans have been used to increase airflow efficiency, at the same time as significantly reducing sound pressure
Newly designed fans have been used to increase airflow efficiency, at the same time as significantly reducing sound pressure
Heat exchanger
A new 3 row heat exchanger has been used which allows for a more compact outdoor unit with higher energy efficiency.
A new 3 row heat exchanger has been used which allows for a more compact outdoor unit with higher energy efficiency.
DC fan motor
High performance and high efficiency has been achieved by using a new smaller DC Fan Motor.
High performance and high efficiency has been achieved by using a new smaller DC Fan Motor.
High efficiency DC Twin Rotary Compressor
A high performance, low noise, large capacity DC Twin Rotary Compressor is used.
A high performance, low noise, large capacity DC Twin Rotary Compressor is used.
10˚C heat operation
Operation starts and maintains the room temperature at 10°C when the temperature drops below 10°C.
Operation starts and maintains the room temperature at 10°C when the temperature drops below 10°C.
Economy operation
By maintaining a slightly higher temperature in cool mode, lower temperature in heat mode and limiting the maximum current draw real energy savings are achieved
By maintaining a slightly higher temperature in cool mode, lower temperature in heat mode and limiting the maximum current draw real energy savings are achieved
